Seamer Clean Design

Aggraffatrice Clean Design

Seamer Clean Design

Zacmi consolidated knowhow

Through more than 35 years’ experience, our Multi-Head Seamer represents the most innovative closing solution for any rigid round can.

General overview

•  Round cans: tin plate, aluminium, cardboard, plastic

•  Lids: open top, easy open, easy peel

• Available for special application: atmospheric, steam, CO2 and liquid N2

• Fully automatic height adjustment

Design construction

Full AISI 304 stainless steel construction

Strong structure to guarantee absence of vibration in any working condition

Seaming system controlled by a desmodromic cam, ideal for high speed performance

Innovative fully automatic lubrication system

Chucks and rolls manufactured in stainless steel or STOODY coated with titanium nitride (option)

Lattina alta
ALUMINIUM BEVERAGE CAN
Lattina cartone
METAL BEVERAGE CAN
Lattina trasparente
PLASTIC CAN
Lattina media
TIN PLATE CAN
Lattina bassa
ALUMINIUM CAN
zacmi seamer

NEW PROTECTION DESIGN

The Hygienic and Safety evolution
Protections with sealed area for:
  • Steam reduction group
  • Compressed air reduction group
  • Electricity
  • Lubrication system
  • CO2 feeding system (for carbonated beverages)
  • Easy accessibility for cleaning and maintenance
CLEAN DESIGN
  • Fully washable design with W.I.P (Washing-In-Place) system specially designed for beverage or difficult product application;
  • Automatic base washing during production;
  • Option for CIP foaming cycle.
1600

CANS/MIN

350

INSTALLED UNITS

3-4-6
8-10-12

MULTI-HEAD CONFIGURATION

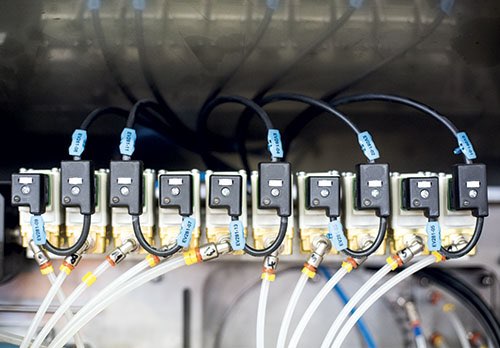

01

• FEATURES:

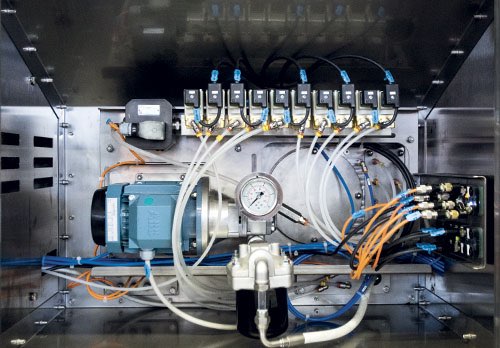

Centralized automatic lubrication with closed circuit oil recirculation, pressurized oil tank and ducted independent distribution system



• ADVANTAGES:

automatic control of all lubrication points


02

• FEATURES:

Roll oil lubrication



• ADVANTAGES:

Special bearings are no longer necessary, reduced maintenance cost


03

• FEATURES:

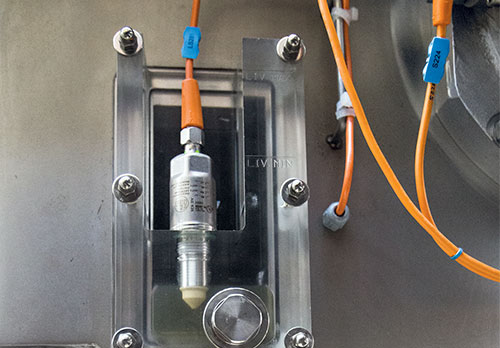

Water/oil separation system with water presence sensor and automatic water discharge (optional)



• ADVANTAGES:

Prevents water presence in the lubrication system, reducing the risk of rusting and oxidation

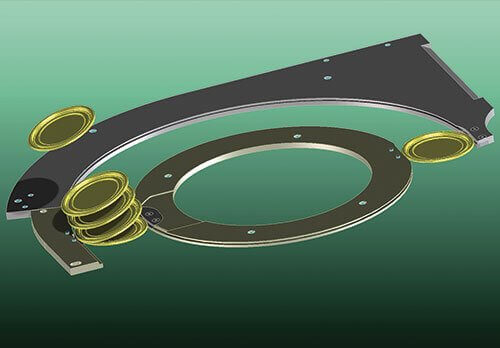

04

• FEATURES:

Lid guides with individual replaceable wear plates



• ADVANTAGES:

Specific maintenance with consequent cost reduction

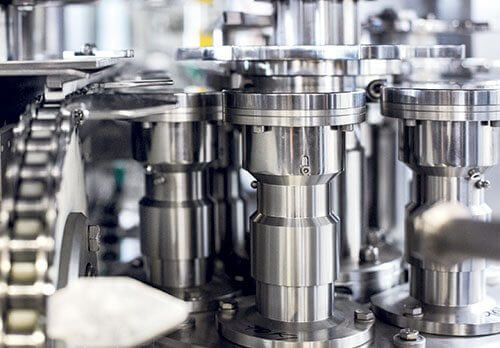

05

• FEATURES:

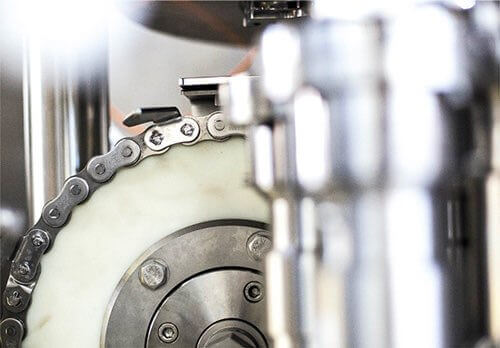

Chain drive system in plastic material



• ADVANTAGES:

Longer life, no corrosion risk by aggressive products


06

• FEATURES:

Rapid seaming pressure regulation system



• ADVANTAGES:

No need to disassemble the plate from the outside

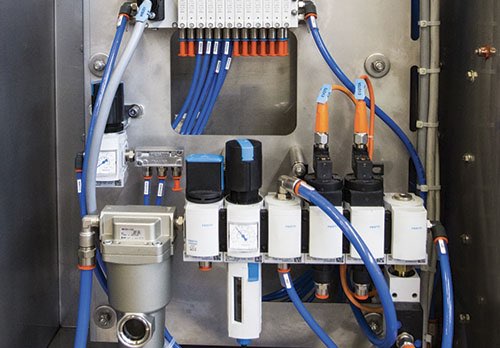

07

• FEATURES:

Dedicated space for the pneumatic plant situated inside the protection



• ADVANTAGES:

Rapid disassembly of the chuck-holding shaft – Major accessibility, easy cleaning and maintenace

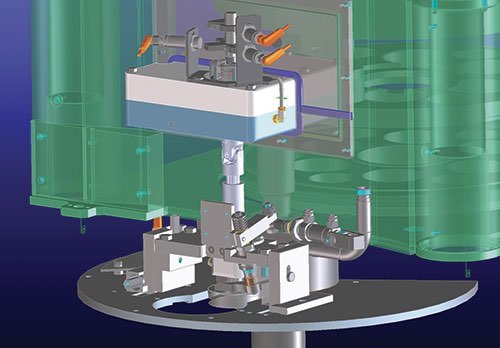

08

• FEATURES:

New lid-feeding design



• ADVANTAGES:

Easier change-over regulation

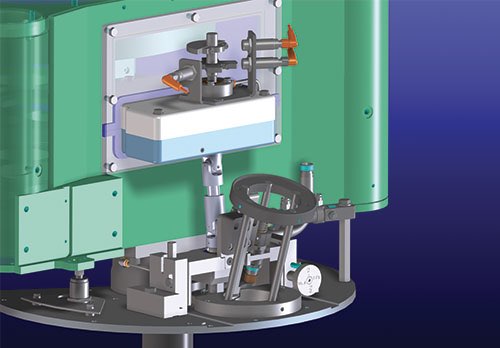

09

• FEATURES:

Lid-feeding blade height regulation system



• ADVANTAGES:

No need for spacers

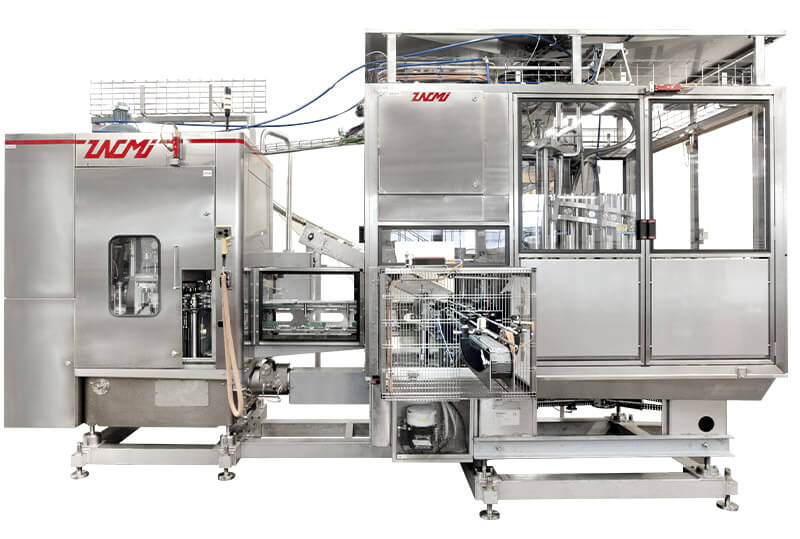

Flexible configuration

All ZACMI Seamers are available in stand-alone configuration or mechanically / electronically synchronized with any kind of Filler.

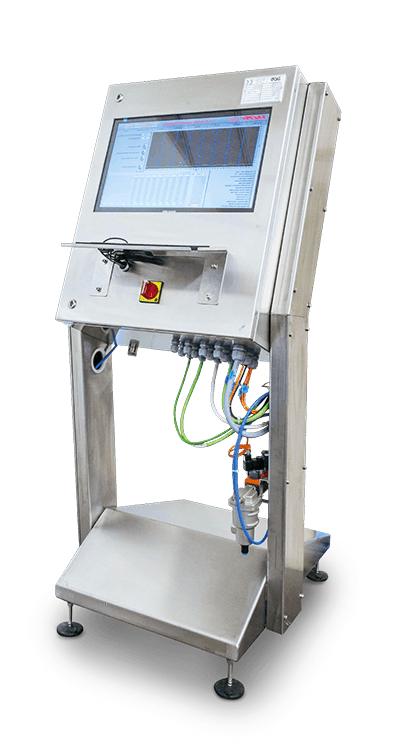

D.S.M. for Seamers

Zacmi Double Seam Monitoring checks the cans seaming performance in real time.

Special sensors are mounted on the second operation cam, recording force signals measurement and detecting in real time any potential out of range seaming operation or can and lid defects, such as:

– Badly seamed cans due to damaged flanges

– Presence of a foreign body between can body and lid

The new D.S.M. system allows data exporting, collection and result reproduction even remotely, that may be analyzed by ZACMI technicians.



ADVANTAGES

By measuring the real force exerted on each seaming head, the D.S.M. may be used for an easy regulation of the machine settings, thus extending the duration of chucks and rolls.
